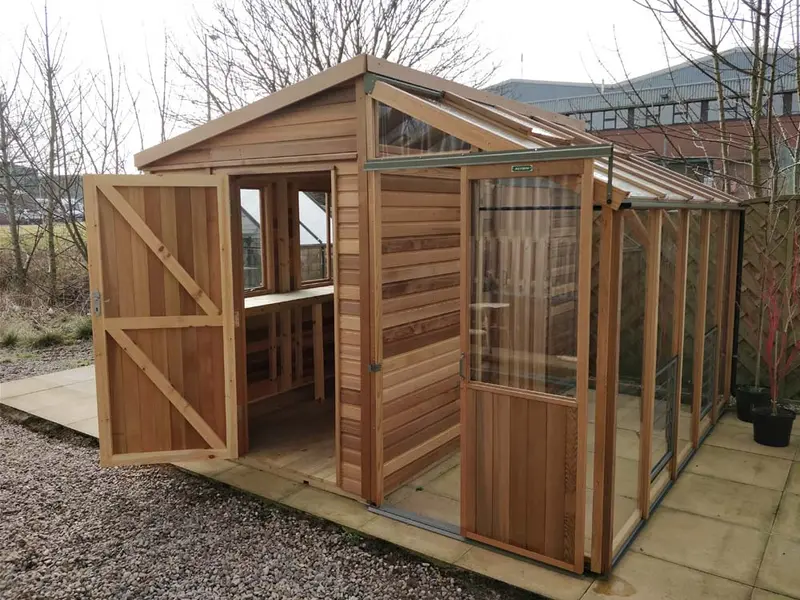

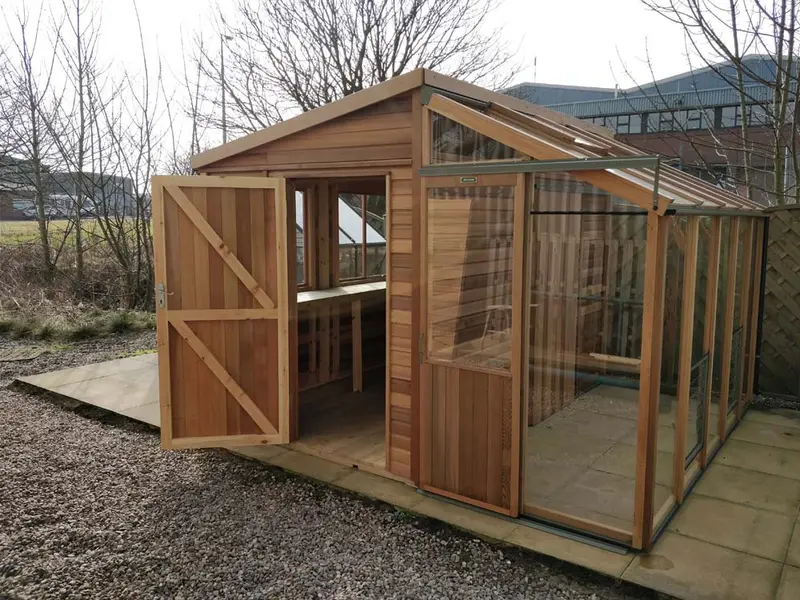

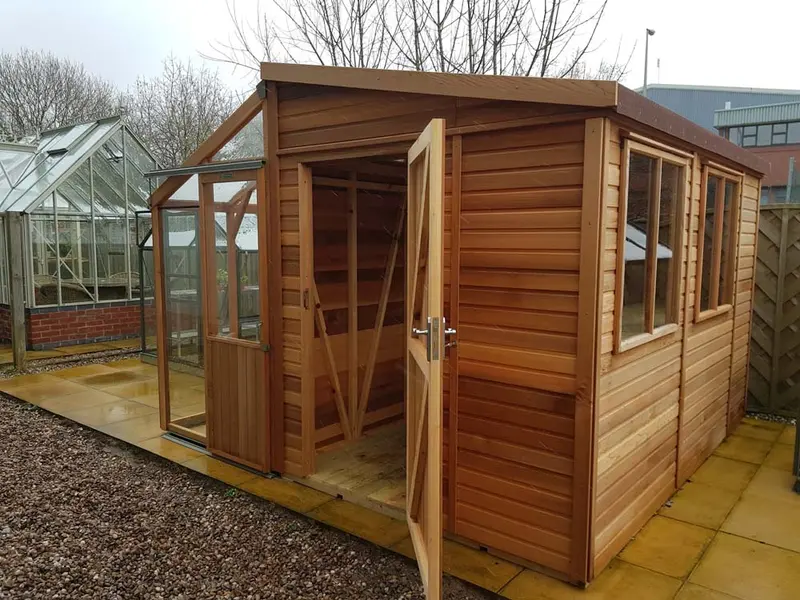

Alton Cedar Fusion Greenhouse – Customizable Sizes

Description

Create Your Perfect Growing Environment with the Alton Fusion Greenhouse!

Are you tired of sacrificing space for your gardening hobby? Look no further!

This greenhouse provides an ideal solution to maximize your growing capacity. With two distinct workspaces under one roof, you can store all your gardening tools and supplies, freeing up valuable growing space in your greenhouse.

Made from Western Red Cedar, a pest and rot resistant material that will withstand even the harshest weather conditions. With its sleek design and high-quality construction, this garden building is perfect for anyone looking to create a thriving growing environment.

Whether you’re a seasoned gardener or just starting out, the Fusion greenhouse is the ultimate solution for maximizing your space and enjoying the rewards of gardening.

Enhance Your Greenhouse Experience with Fusion Greenhouse!

• Dual Workspaces: Two distinct areas under one roof, perfect for various gardening tasks and skill levels.
• Maximized Growing Area: Efficient storage options free up valuable greenhouse space for your plants.
• Optimal Climate Control: Automatic roof vent, louvered side window, and high eaves ensure perfect air circulation and temperature.
• Secure & Accessible: Lockable hinged and sliding doors provide safe and convenient access to tools and supplies.
• Durable Construction: Toughened safety glass, screw-down timber bar capping, and tongue & groove framing with aluminum gussets ensure lasting strength and a watertight seal.
• Premium Features: Aluminum roof capping, high-quality door hardware, pre-assembled doors/windows, and a solid cast aluminum roof crest enhance style and functionality.
• 10-Year Guarantee & Natural Cedar Aroma: Enjoy peace of mind with a 10-year warranty and the delightful scent of natural cedar.

Don’t settle for a mediocre greenhouse experience. Upgrade to the Alton Fusion Greenhouse today and enjoy the benefits of a well-designed, high-quality structure that will help you grow your passion for gardening with confidence!

Download Documents for Alton Fusion Greenhouse

Alton Cedar Structure Fusion Greenhouse 10 x 10 Base Plan

Alton Cedar Structure Fusion Greenhouse 10 x 12 Base Plan

Alton Fusion Glass Lean-to Assembly Instructions

Alton Fusion Greenhouse Sliding Door Instructions

Alton Fusion 10′ Instruction Manual

Alton Cedar Fusion Greenhouse 10×10 Workshop Right Floor Plan

Specifications of Cedar Structure Alton Greenhouse

Size	10×10	10×12
A = Base width	130.47in (10ft10in)	130.47in (10ft10in)
B = Length	127.44in (10ft7in)	152.17in (12ft8in)
C = Eaves height	80.71in (6ft8in)	80.71in (6ft8in)
D = Ridge height	96.18in (8ft0in)	96.18in (8ft0in)
E = Door width	31.73in (2ft7in)	31.73in (2ft7in)
F = Door height	72.72in (6ft0in)	72.72in (6ft0in)
Square feet	115 sq.ft	138 sq.ft
Area (square metres)	10.72 m²	12.81 m²
Automatic Roof Vents	2 pcs	2 pcs
Louvre Vents	2 pcs	2 pcs
Frame Material	Western Red Cedar (Grade 1, knot-free)	Western Red Cedar (Grade 1, knot-free)
Glazing	3mm tempered safety glass	3mm tempered safety glass
Roof	45° pitch for snow shedding	45° pitch for snow shedding
Foundation	Special profile to raise wood framing 1″ from the ground	Special profile to raise wood framing 1″ from the ground
Wood Treatment	Preservative solution to prevent rot and water absorption	Preservative solution to prevent rot and water absorption
Guttering	Included for water drainage	Included for water drainage
Origin	Made in England	Made in England
